With over five decades of manufacturing experience, ATS ALGI'S has one of the widest and most perfected range of Wheel Service Equipment equipped for aligning, balancing, changing, mounting, inflating, bead seating & vehicle fitness testing. These products deliver thorough and accurate results to ensure maximum safety on the road.
ATS ALGI'S & Equipment LLPwheel alignment systems use cameras to observe targets determining wheel’s precise position in 3D space.
| Parameter | Range |
|---|---|
| Camber | ±8° ±3’ |
| Toe | ±5° ±3’ |
| Caster | ±19° ±8’ |
| SAI/KPI | ±19° ±8’ |
| Thrust Angle | ±2.5° ±3’ |
| Geometrical Driving Axis | ±2.5° ±3’ |

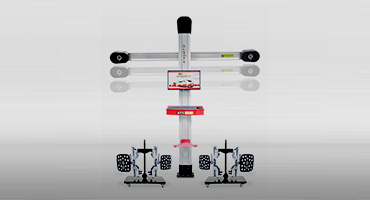

This True automatic tracking Wheel aligner enables technicians to do measurements and adjustments at different lifting heights. Compensations on ground level and adjustments on lifting level.
| Parameter | Unit | Data |
|---|---|---|
| Rim Diameter | Inches | 11 to 24 |
| Wheelbase Range | mm | 1750 to 4000 |
| Track Width Range | mm | 1210 to 2430 |
| Camera to Turn Table Distance | mm | 1800 to 2500 |
| Measurement Accuracy | mm | 00º01′ / 0.1 |
| Power Supply | – | 1ph, 230V, 50Hz |
| Machine Dimension (LxWxH) | mm | 2932 x 515 x 3000 |
This modern Elegant Two Post Lift Wheel Aligner eliminates all the traditional way of doing wheel alignments in Pit / Alignment lifts or allotting dedicated bay for wheel alignment process. It’s compatibleness with Two Post Lifts, enables wheel alignment process in existing mechanical bays at workshops.
| Parameter | Range | Accuracy |
|---|---|---|
| Rim diameter | 10" - 24" | |
| Power requirements | 230V, 1Ph, 50Hz | |
| Display accuracy | 00.01'/0.1 mm | |
| Camber | ±10° | ±2' |
| Caster | ±20° | ±6' |
| Kingpin Inclination | ±20° | ±6' |
| Toe-in & Toe-out | ±20° | ±6' |
* Compatible Wheel Aligner for PIT and Lift
* Universal target plates for all wheels to prevent the technician confusion
* User friendly software interface
* Operating system - Windows / Android
* Equipped with 21.5" LED monitor for premium look and better visibility
* Computer Interface with updated Indian Vehicle database
* Unique Quick measurement feature for quick results
* Wider wheel Clamp 11" to 24"
* Unique in-built computer for alignment
* High resolution HD camera
* High durability aluminium turn plates
* Wheelbase up to 3.5 meters
* VODI - Vehicle Orientation Direction Indicating while doing Runout and Caster swing operation
* Option for selection of vehicle specification during alignment
* Thrust angle compensation
* Animated runout compensation

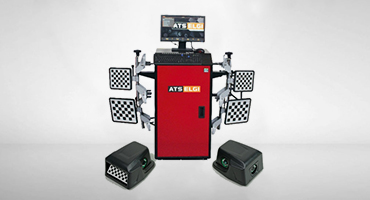

In order to neglect the constraints of space requirements, ATS ALGI'S & Equipment LLPhas brought in a solution by launching this ELEGANT – MOBI ALIGNER, which is more Compact and Portable Wheel Aligner.
| Parameter | Range |
|---|---|
| Rim diameter | 1" – 25" |
| No. of measurement units | 2 |
| No. of cameras | 3 |
| Mounting type | Clear floor, Scissor lift, Four post lift. |
| Power requirements | Voltage 220 ± 10%, 50/60 Hz. |
| Measures | Camber, Caster, Kingpin Inclination, Toe-in, Toe-out, Set back, and Thrust Angle. |
* Compatible Wheel aligner for PIT Construction only
* Universal target boards
* Wider Wheel Clamp 11" to 24"
* User friendly software interface
* Operating System - Windows/Android
* Unique in-built computer for alignment
* Equipped with 22" monitor
* High resolution HD camera
* Less installation space
* Updated Indian vehicle database
* High durability aluminium turn plates
* Unique quick measurement mode
* VODI - Vehicle Orientation Direction Indicating while doing Runout and Caster swing operation
* Wheelbase up to 3.5 meters
* Option for selection of vehicle specification during alignment
* Thrust angle compensation
* Capable of measuring trucks with wheelbase up to 13 meters.
* Machine vision system automatically recognizes the target that are installed on the wheels.
* Compact and easy targets, no need to calibrate it & easy to handle.
* Wheel adapters are self-centering with the mobile central part fit 12" - 24".
* In addition to HCV,ATS ELGI Truck Wheel Aligner is capable of measuring LCV and PCV which has Wheel base more than 2m.
* Axle reference measurements are available.
* Bluetooth remote control ensures easy operation.

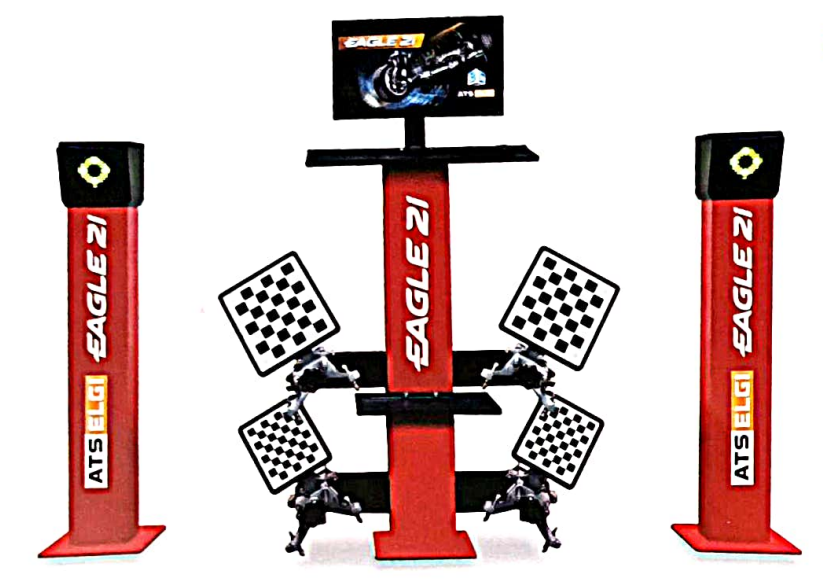

| Variants | Egle 2i |
|---|---|
| Compatible for alignment of buses, trucks, trailers and cars | Y |
| Compatible for alignment of articulated buses(drive through) | Y |
| Compatible with Multi axles (up to 16 wheel vehicle) | Y |
| Simultaneous alignment of axles | 2 Axles |
| Simultaneous alignment of 6 axles | Y |
| Drive through option | Y |
| Alignment of trailers above 4 axles in reverse parking by repeat measurement mode with single sequence | Y |
| Sequential of trailers up to 4 axles by reverse parking | Y |
| Simultaneous alignment of trailers up to 4 axles in forward parking and reverse parking | Y |
| Display of toe in "Deg Min" "Deg" "mm" "Inch" & other angles "Deg Min" "Deg" | Y |
| Export option for old reports | Y |
| Compatible for aligning multiple steer axle | Y |
| Camera coverage(camera to last target plate) | 16m |
| Upgradation to models | X |
* Capable of measuring trucks with wheelbase up to 16 meters.
* Machine vision system automatically recognizes the targets that are installed on the wheels.
* Compact and easy targets, no need to calibrate it & easy to calibrate it & easy to handle.
* Wheel adapters are self-centering with the mobile part fit 12"-24".
* In addition to HCV,ATS ELGI Truck Wheel Aligner is capable of measuring LCV and PCV which has Wheel base more than 2m.
* Axle reference measurements are available.
* Bluetooth remote control ensures easy operation.
* X = Vehicle Axle Configuration

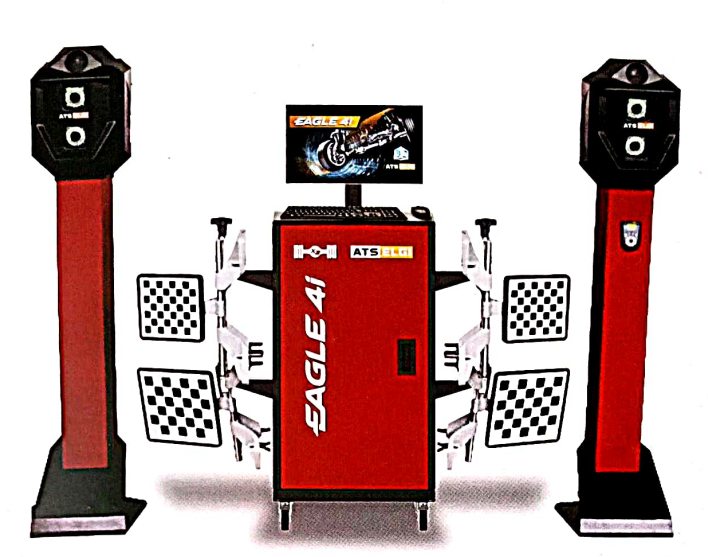

| Variants | Egle 4i X2 | Egle 4i X2 Portable |
|---|---|---|
| Compatible for alignment of buses, trucks, trailers and cars | Y | Y |
| Compatible for alignment of articulated buses(drive through) | Y | Y |
| Compatible with Multi axles (up to 16 wheel vehicle) | Y | Y |
| Simultaneous alignment of axles | 2 Axles | 2 Axles |
| Simultaneous alignment of 6 axles | Y | Y |
| Drive through option | Y | Y |
| Alignment of trailers above 4 axles in reverse parking by repeat measurement mode with single sequence | Y | Y |
| Sequential of trailers up to 4 axles by reverse parking | Y | Y |
| Simultaneous alignment of trailers up to 4 axles in forward parking and reverse parking | Y | Y |
| Display of toe in "Deg Min" "Deg" "mm" "Inch" & other angles "Deg Min" "Deg" | Y | Y |
| Export option for old reports | Y | Y |
| Compatible for aligning multiple steer axle | Y | Y |
| Camera coverage(camera to last target plate) | 19m | 19m |
| Upgradation to models | X | X |

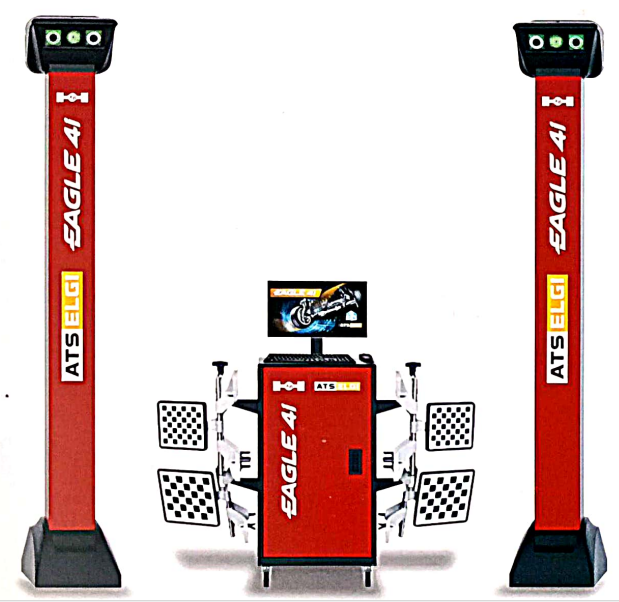

* One Step alignment up to 6 Axles.
* Capable of measuring trucks with wheelbase up to 16 meters.
* Machine vision system automatically recognizes the targets that are installed on the wheels.
* High resolution wide scope cameras.
* VODI - Auxiliary target display for target setting.
* 4 Compensation modes available forward rolling compensation - First in class in this segment.
* Compact and easy targets, no need to calibrate it & easy to handle.
* Wheel adapters are self-centering with the mobile central part fit 12" - 24".
* In addition to HCV, ATS ELGI Truck Wheel Aligner is capable of measuring LCV and PCV which has Wheel base more than 2m.
* Frame reference, baseline reference and Axle reference are available.
* Bluetooth remote control ensures easy operation.
X = Vehicle Axle Configuration.
| Variants | Egle 4i X4 | Egle 4i X5 | Egle 4i X6 |
|---|---|---|---|
| Compatible for alignment of buses, trucks, trailers and cars | Y | Y | Y |
| Compatible for alignment of articulated buses(drive through) | Y | Y | Y |
| Compatible with Multi axles (up to 16 wheel vehicle) | Y | Y | Y |
| Simultaneous alignment of axles | 4 Axles | 5 Axles | 6 Axles |
| Simultaneous alignment of 6 axles | Y | Y | Y |
| Drive through option | Y | Y | Y |
| Alignment of trailers above 4 axles in reverse parking by repeat measurement mode with single sequence | Y | Y | Y |
| Sequential of trailers up to 4 axles by reverse parking | Y | Y | Y |
| Simultaneous alignment of trailers up to 4 axles in forward parking and reverse parking | Y | Y | Y |
| Display of toe in "Deg Min" "Deg" "mm" "Inch" & other angles "Deg Min" "Deg" | Y | Y | Y |
| Export option for old reports | Y | Y | Y |
| Compatible for aligning multiple steer axle | Y | Y | Y |
| Camera coverage(camera to last target plate) | 19m | 19m | 19m |
| Upgradation to models | X5 & X6 | X6 | X |
