ATS ALGI'S Electro – Hydraulic Clear Floor Lifts are the most popular lifts in the Passenger Vehicles Segment. Used for lifting vehicles to any comfortable working height up to 6 feet, leaving head room for complete under-chassis access.
Model : TPHL – 4.0 CF
| Specification | Details |
|---|---|
| Lifting Capacity | 4000 Kgs |
| Lifting Time | 55 sec |
| Min. Lifting Height | 115 mm |
| Max. Lifting Height | 1800 mm |
| Motor Power | 2.2 KW |

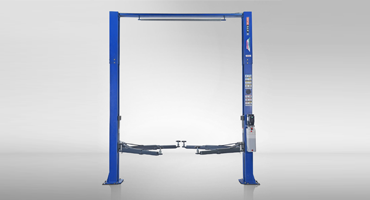

ATS ALGI'S Electro – Hydraulic hoist with base is used for lifting vehicles to any comfortable working height up to 6 feet. High raised vehicle can be easily accommodated in this lift. Electro – Hydraulic operation saves power and maintenance cost.
Model : TPHL – 4.0 WB
| Specification | Details |
|---|---|
| Lifting Capacity | 4000 Kgs |
| Lifting Time | 55 sec |
| Min. Lifting Height | 115 mm |
| Max. Lifting Height | 1800 mm |
| Motor Power | 2.2 KW |

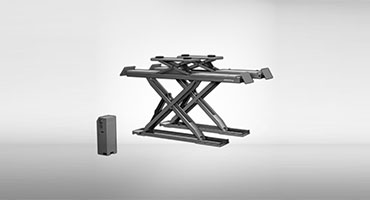

With the lifting capacity of 4 Tons, this lift has been specifically designed to suit all type of wheel alignment operations and to deliver maximum productivity out of your available space. This model supports both on ground & in ground installation options to ensure maximum flexibility of the available workspace.
Model : WASL 4 Ton
| Specification | Details |
|---|---|
| Lifting Capacity | 4000 Kgs |
| Min. Lifting Height | 330 mm |
| Max. Lifting Height | 1800 mm |
| Electric Motor Power Rating | 2.2 KW |
| Air Requirements | 6 – 8 Bar |

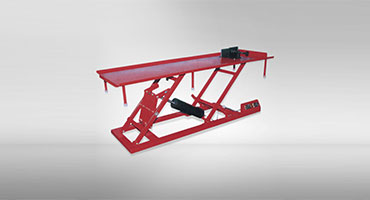

Two wheeler lifts are the preferred choice for top auto manufacturers, for their service stations. Our pneumatically operated two wheeler lifts are well stabilized in the market, offering you to maximize your floor area by consuming less space.
Model : PL 00 002 H
| Specification | Details |
|---|---|
| Lifting Capacity | 180 Kgs |
| Valve Operation | Foot Operated |
| Min. Lifting Height | 250 mm |
| Max. Lifting Height | 765 mm |
| Air Pressure | 6 Kgf/cm² |
